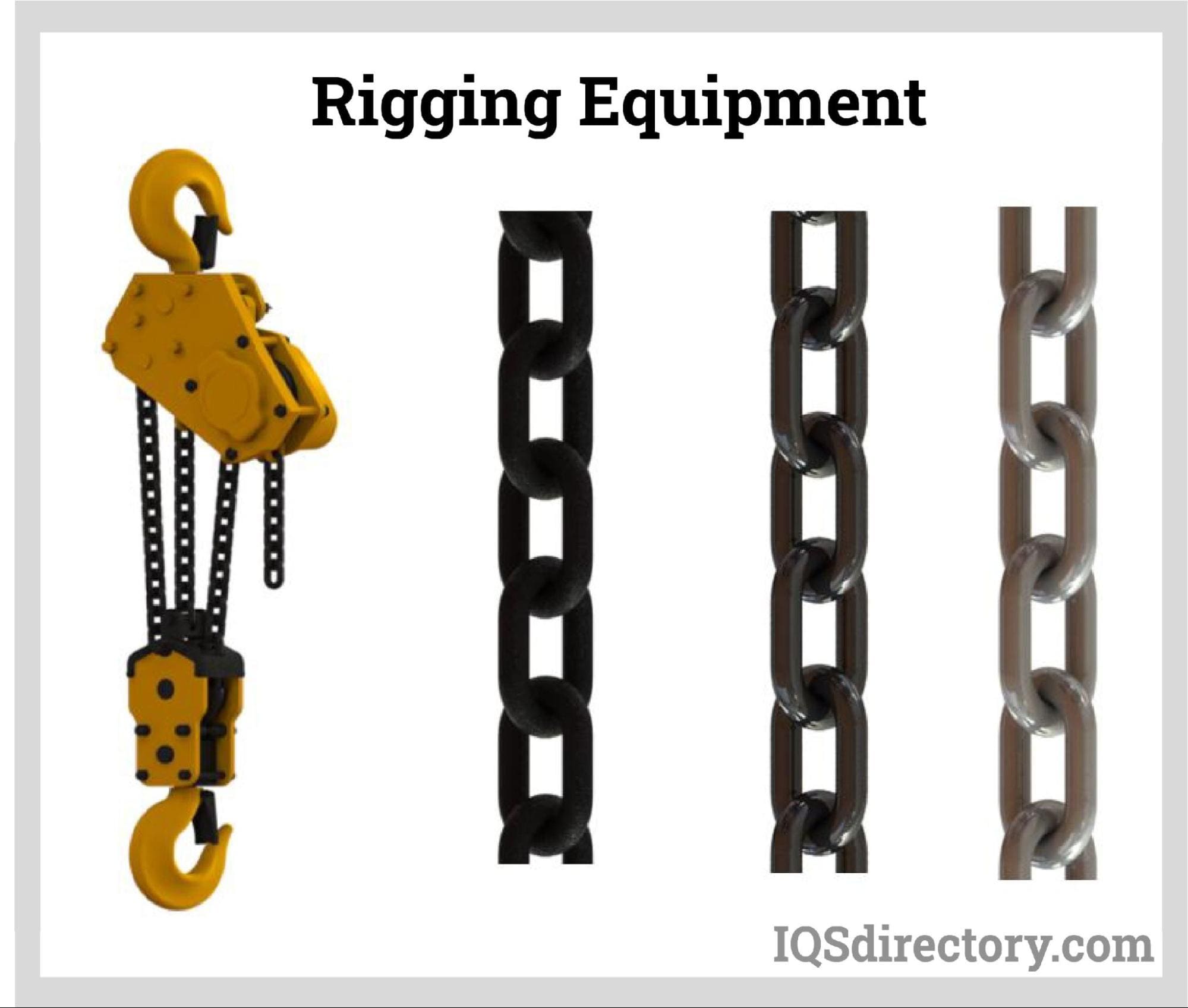

Types of Rigging Equipment

Different tool sets with a range of functions are needed for rigging operations. It is essential to understand what they are and how they work to ensure a safe lifting procedure. Below are some examples of the primary rigging equipment categories.

Rigging Hooks & Shackles

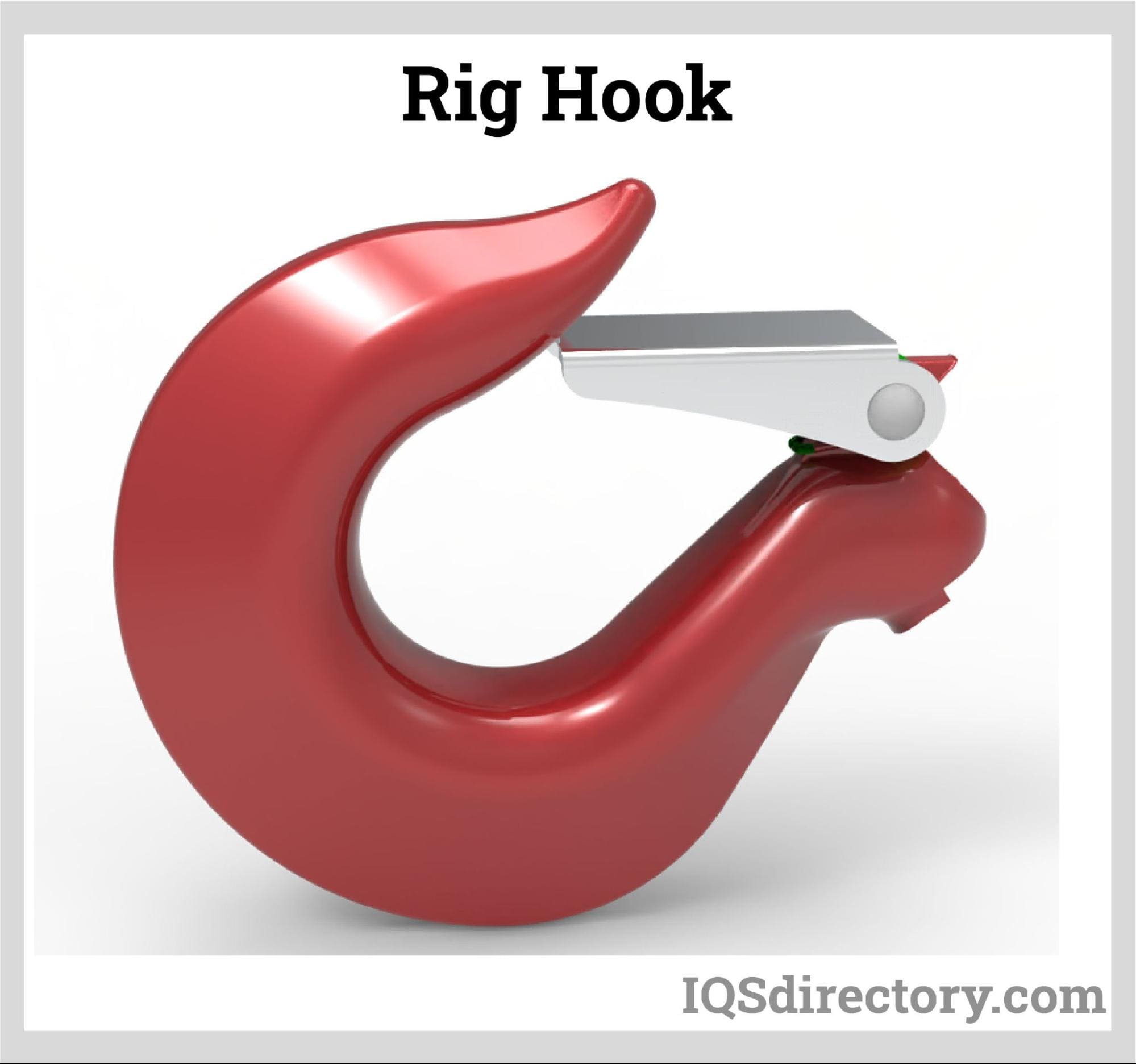

Cargo is frequently mounted to a crane with rigging hooks or shackles to connect and move cargo. Heavy loads are kept from slipping in the air due to these items having a firm grip on them. Although they may frequently serve the same purpose, rigging hooks and shackles are designed differently. Rigging hooks normally consist of two components: an integrated spring latch and a loop of steel connected to a chain.

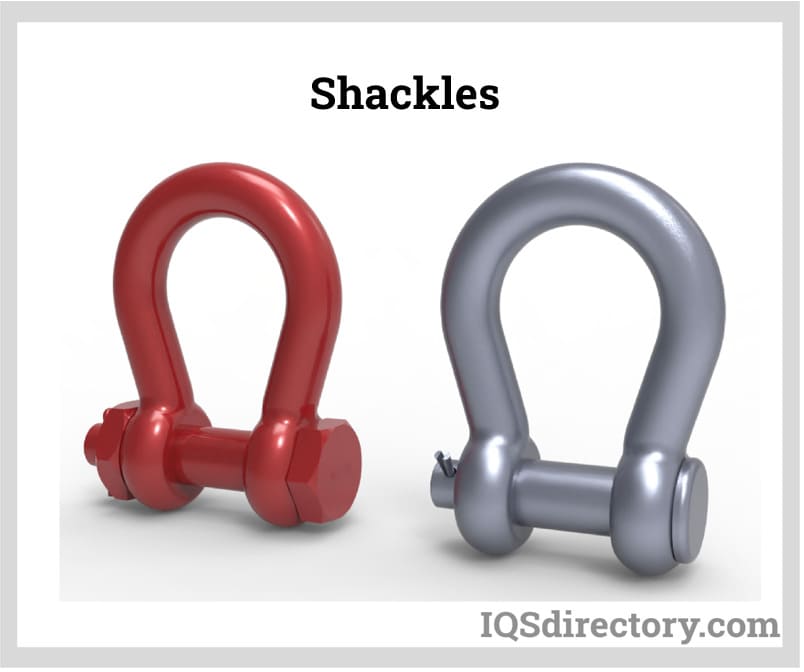

Choker hooks, eye hooks, clevis grabs, and sorting hooks are a few of the most used rigging hooks. Meanwhile, shackles loosely resemble a horseshoe. They secure their connection with a bolt-like device (pin) running through both ends (ears). One end of the pin subsequently features an opening for a tang or split pin to fit through to secure the pin in place.

Wire Ropes

Wire ropes support the load during the lifting process. Its potency and application rely on the following:

• Rope width
• Core material
• Grade of steel wire finish (bright steel, galvanized, stainless steel)

Each rope must be one continuous piece without a knot, per OSHA 1926.251(c)(4). Therefore, it shouldn't have eye splices and endless rope slings at the wire’s ends. Additionally, every rope's eye splice should only contain three complete tucks.

Slings

Slings are flexible, lightweight equipment used with wire ropes to hoist large objects. When moving heavy weights about the site, they offer strength and balance. Slings mainly come in two varieties and are made of synthetic materials:

• Endless sling – takes the form of an unending loop
• Eye-and-eye sling – contains flat, triangular, or twisted ends made of metal, polyester, or nylon

Pulleys & Blocks

Blocks and pulleys work together to lift big objects with minimal force. As a result, they offer sufficient support while lessening the force needed to lift the load. A rigging rope is looped around the pulley and fastened to the item to make the pulley function. While moving the load, the pulley holds the rope. Depending on the type of frame, rope, and sheave size employed, it comes in various sizes. The block also acts as a stabilizing force by supporting the weight being pulled by the rope during the procedure. Snatch, square, and swivel blocks are some of their most popular types.

Eye Bolts

This tool loops cables and serves as an anchor point in rigging applications. Depending on their needs, riggers can choose from various sizes and materials for it. The common varieties of eye bolts are listed below:

• Shouldered bolts are used to load machinery obliquely.
• Straight bolts without shoulders are used to raise things in a vertical system.
• U-bolts, screw eye bolts, and other types of bolts

The following set of factors will determine which eye bolt is best:

• Weight of the load
• Type of sling used
• The angle of loading the object (e.g., angular, vertical)
• The frame material for the bolt (e.g., wood, metal)

Steel Nuts

Steel nuts and eye bolts frequently function together when anchoring a rigging system. As a result, they are available in different sizes and configurations appropriate for various rigging applications. The choice will be based on the load's weight and the thread type (right-hand or left-hand).

Examples of steel nuts include the following:

• Ball ends
• Dome nuts
• Hex nuts
• Lifting eye nuts
• Wingnuts
• Turnbuckles

With the aid of this device, a cable, chain, rope, or another piece of tensioned rigging equipment can be lengthened or tightened. It has two threaded eye bolts, one fastened to each end of a small metal frame. It comes in two varieties: a bottle screw or a stretching screw.

Spreader Bars & Lifting Beams

When lifting, these devices link the target with the crane. They make the lift more manageable by stabilizing the load's weight. The type of load that needs to be supported will determine how they are used. Spreader bars, as their name suggests, work by spreading an object’s weight during lifting. They are the better choice for objects that need to be supported throughout their entire span. Lifting beams, on the other hand, absorb a load's weight more centrally. Lifting beams offer less stability in their function but may require less clearance space to operate.

Considerations When Selecting Rigging Equipment

The following set of factors must be taken into account when choosing the appropriate kind of rigging equipment to use:

• The item to be moved and its size
• The item’s weight
• The hook opening's dimensions
• A hoist’s incline and attachment sites
